Halls dimensions
Dimensions of exhibition halls and gates in meters
Hall A - first floor
up to the ceiling 3,0
up to the upper block of the barrier 5,01
up to the ceiling in the middle of the hall 6,8
gate A1 – height 2,3; width 3,8
Hall A - second floor
up to the beam 2,8
up to the ceiling 3,7
height of the barrier 0,97

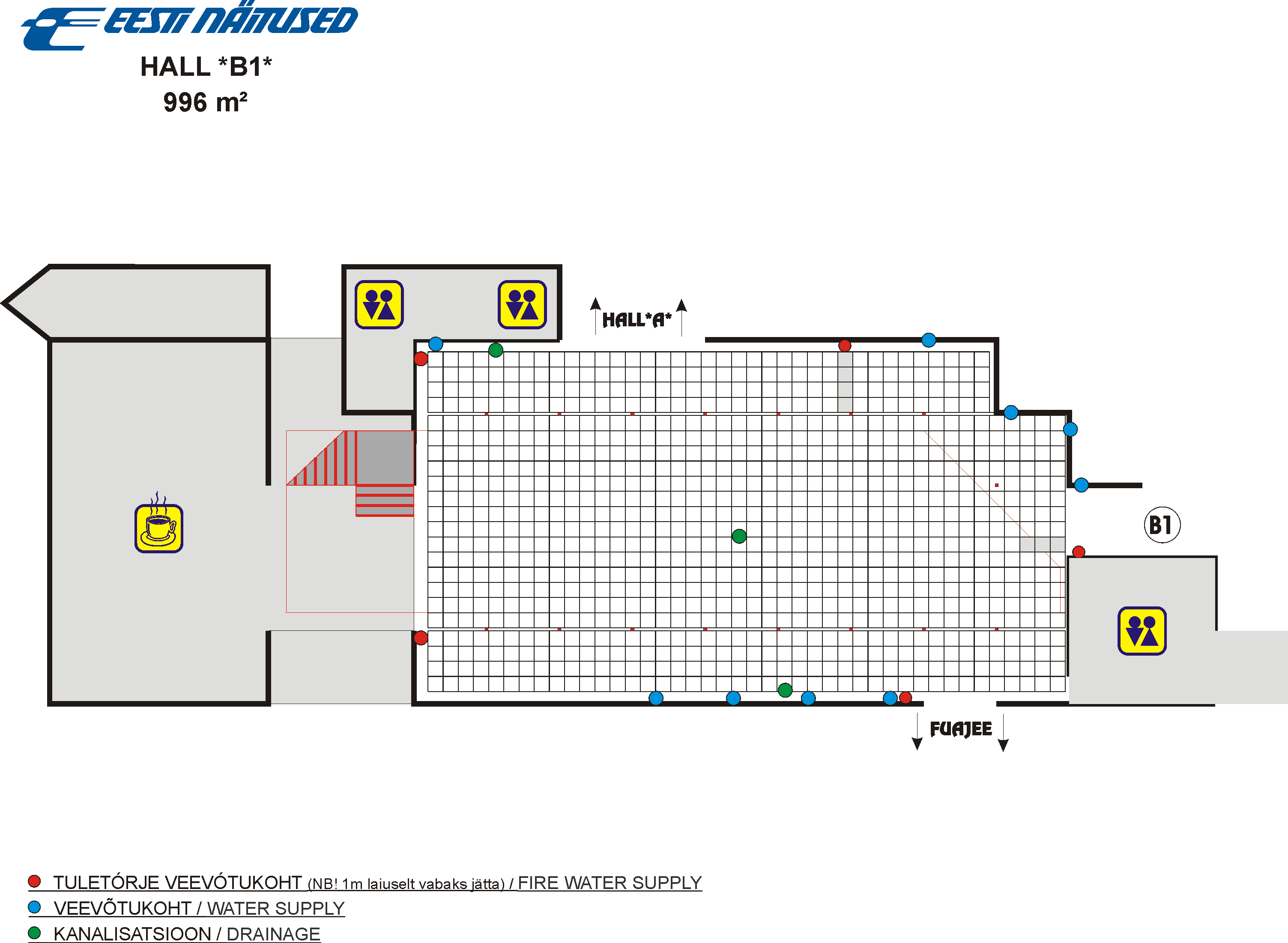

Hall B - first floor
up to the beam 3,5
up to the upper block of the barrier 4,99
up to the beam in the middle of the hall 6,8
gate B1 – height 3,1; width 4,2

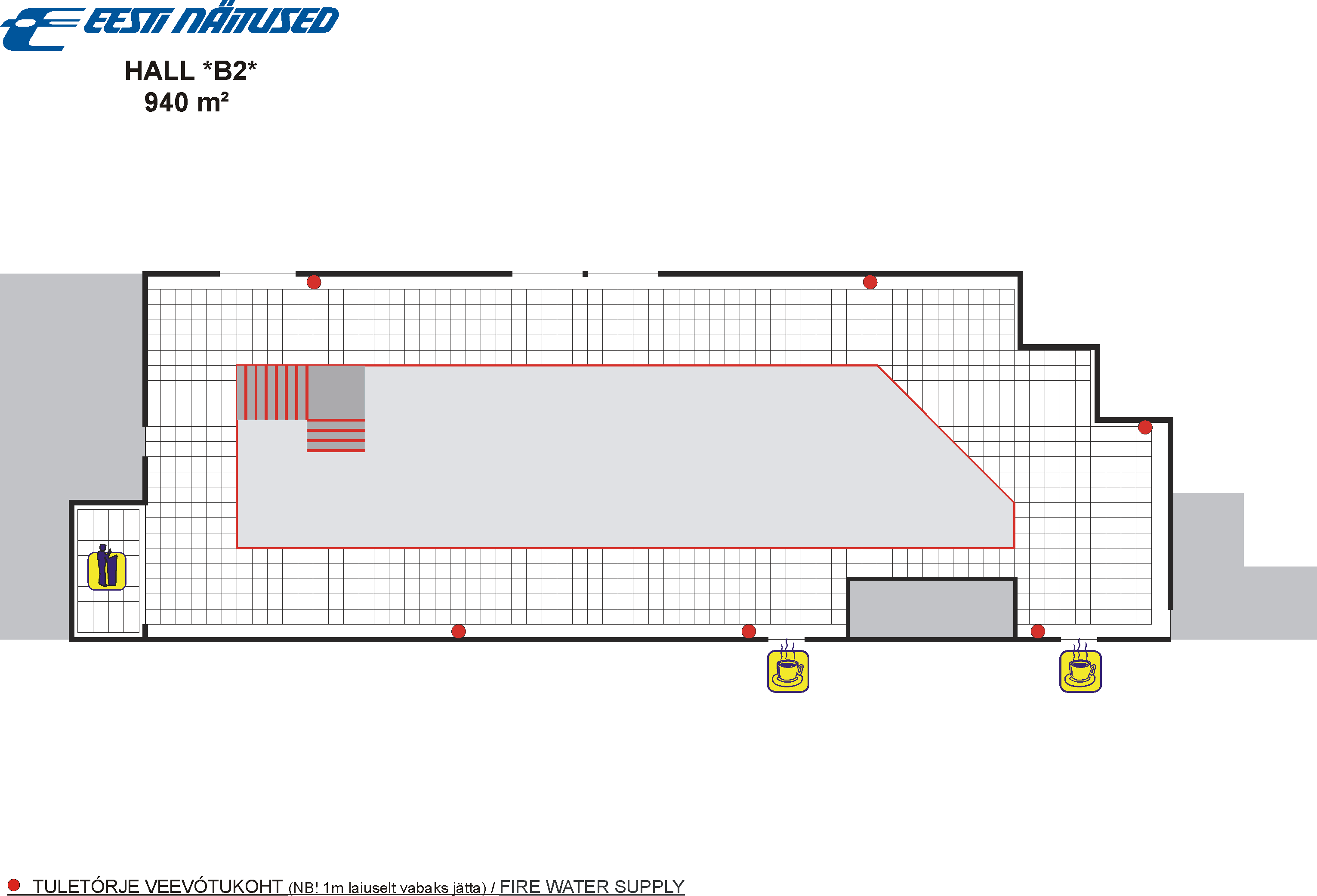

Hall B - second floor
up to the beam 2,8
up to the ceiling 3,9
height of the barrier 0,96
doors between halls A and B – height 1,8; width 1,5

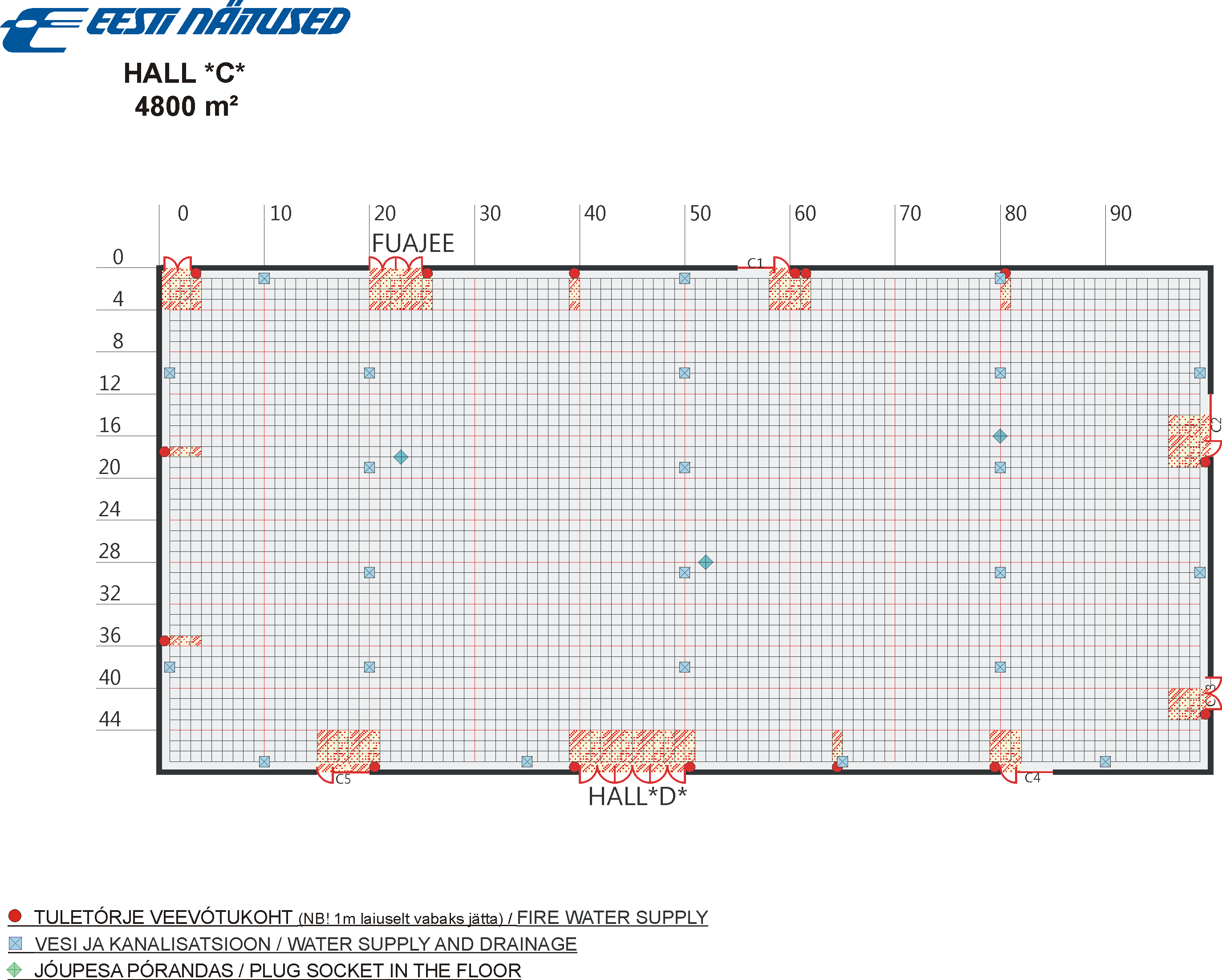

Hall C
up to the trusses 8,0
distance between trusses 10,0
gate C1 – height 4,04; width 4,8
gate C2 – height 4,04; width 5,8
gate C3 – height 3,5; width 2,8
gate C4 – height 4,04; width 4,8
gate C5 – height 4,78; width 4,48
doors between foyer and hall C – height 2,34; width 2,2
doors between halls C and D – height 3,4; width 2,7

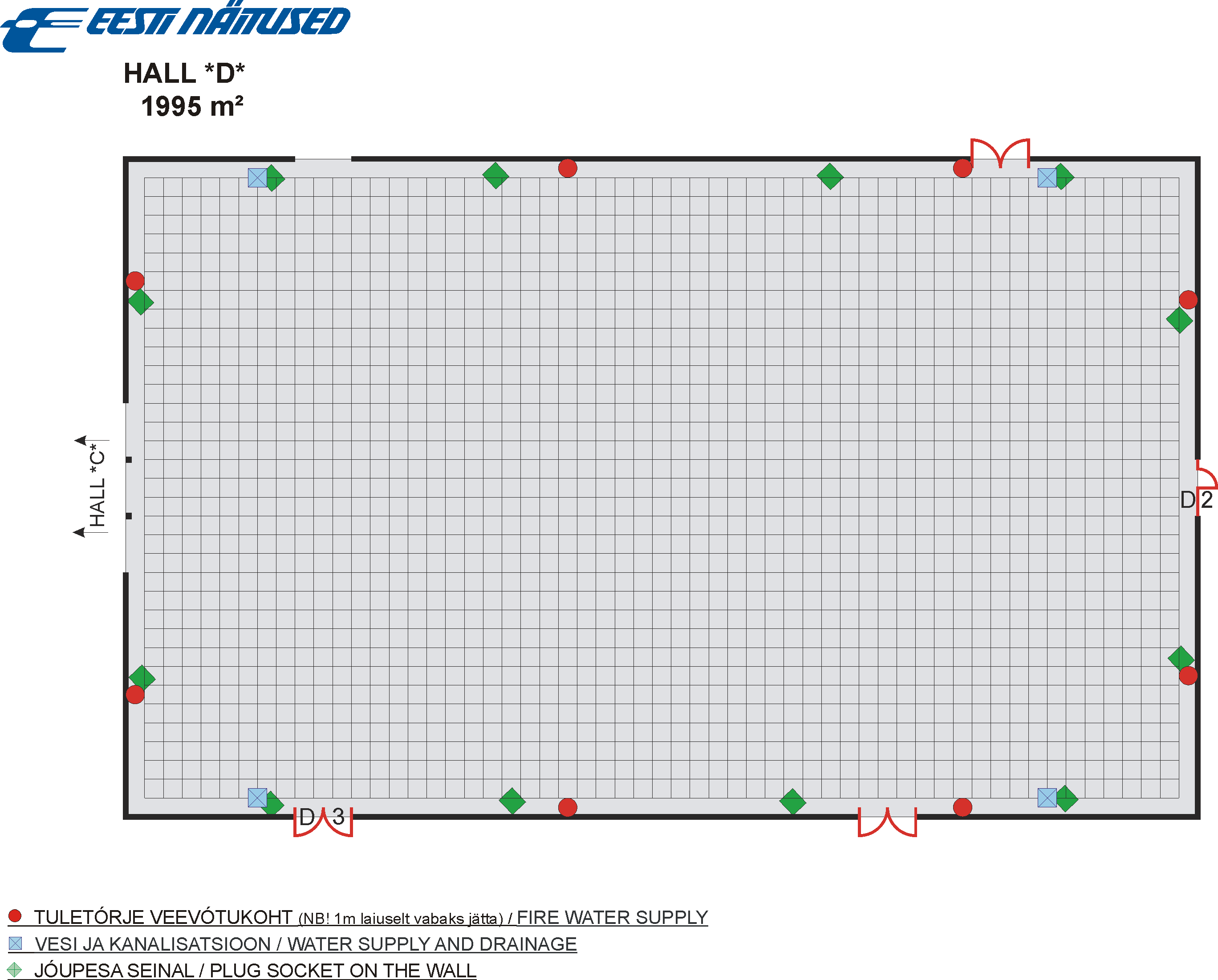

Hall D
up to the ceiling in the middle of the hall 7,2
up to the trusses 8,7
1,5m from outer wall – height up to the ceiling 5,4
gates D1 and D3 (ascent 7cm) – height 3,3; width 2,7
gate D2 – height 4,9; width 3,8
